Standard • ADA & Custom
4' ADA GUARDRAIL CUT SHEET8' ADA GUARDRAIL CUT SHEET

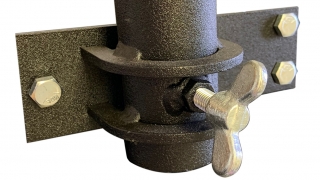

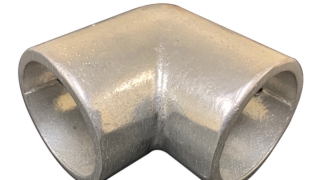

ADA and Picket Guardrail are available in steel or aluminum construction. The steel version is constructed using Schedule 10 steel pipe, 1” x 2” steel tube and is powder-coated black. The aluminum version is constructed using 2” x 2” aluminum tube and Schedule 40 aluminum pipe. Both options offer infill balusters spaced less than 4 inches apart and chairstops. The aluminum guardrail also has a 36 inch intermediate handrail, a continuous handrail at 42 inches and has a standard mill finish. Our ADA guardrail is rated for 200 lb. side load impact requirement, requires no tools for installation and easily attaches to a variety of stage decks using our jaw-type clamp device or our side mount system. In addition to the standard sizes listed below ADA Guardrail is also available in starter ramp and corner styles.
• 2’ Guardrail with Chairstop• 3’ Guardrail with Chairstop• 4’ Guardrail with Chairstop• 5’ Guardrail with Chairstop• 6’ Guardrail with Chairstop• 7’ Guardrail with Chairstop• 8’ Guardrail with Chairstop
